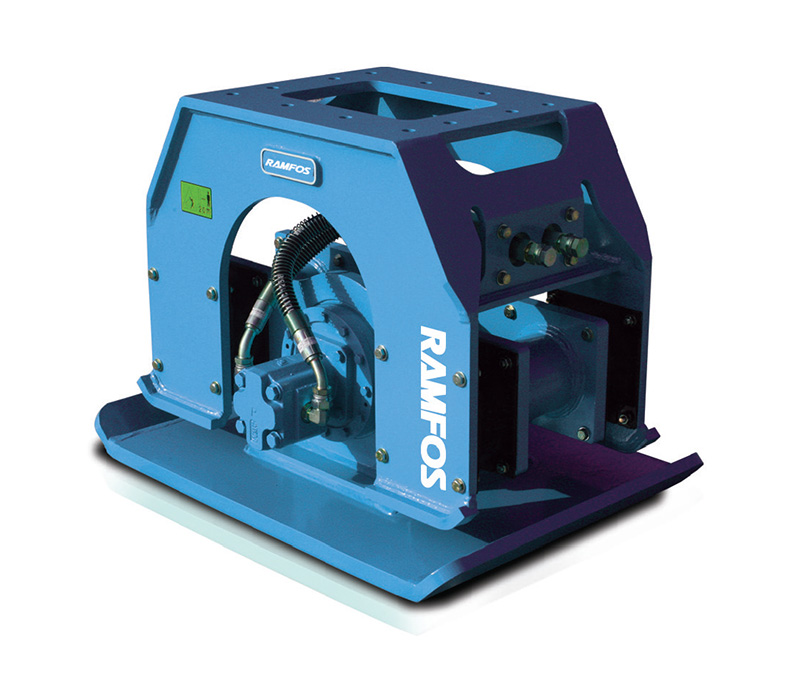

RAMFOS plate compactors are developed to maximize productivity and minimize downtime with variety of the highest functions. Operators would experience it with full satisfaction.
Advantages:
| Models | TV05 | TV10 | TV15 | TV20 | TV30 | |
|---|---|---|---|---|---|---|
| Weight | ||||||
| Impulse force | ton | 2.1 | 4 | 6.4 | 11.2 | 17.3 |
| Adapter mount type | lb | 575 | 948 | 1,519 | 2,412 | 3,311 |
| Direct mount type | lb | 582 | ||||
| Height | ||||||
| Adapter mount type | in | 25.5 | 25.2 | 29.5 | 33.1 | 37.1 |
| Direct mount type | in | 27.3 | ||||
| Width | in | 12.6 | 24 | 29.1 | 33.8 | 39.4 |
| Base plate [W x L] | ||||||
| Dimension | in | 12.6 x 29.3 | 24 x 35.4 | 29.1 x 41.3 | 33.8 x 47.2 | 39.4 x 51.2 |
| Compaction area | ft² | 2.6 | 5.9 | 8.4 | 11.1 | 14 |
| Oil flow required | gpm | 11.9 - 17.2 | 13.2 - 19 | 21.1 - 30.6 | 29.1 - 42.8 | 42.3 - 58.1 |
| Max. cycle per minute | gpm | 555 | 528 | 528 | 528 | 528 |
| Operating Pressure | ||||||
| Free load | psi | 435 - 725 | 435 - 725 | 435 - 725 | 435 - 725 | 435 - 725 |
| With load | psi | 1,450 - 3,191 | 1,450 - 2,002 | 1,450 - 2,002 | 1,450 - 2,002 | 1,450 - 2,002 |
| Optimal range | ton | 4 - 6 | 11 - 16 | 11 - 16 | 17 - 25 | 26 - 40 |
