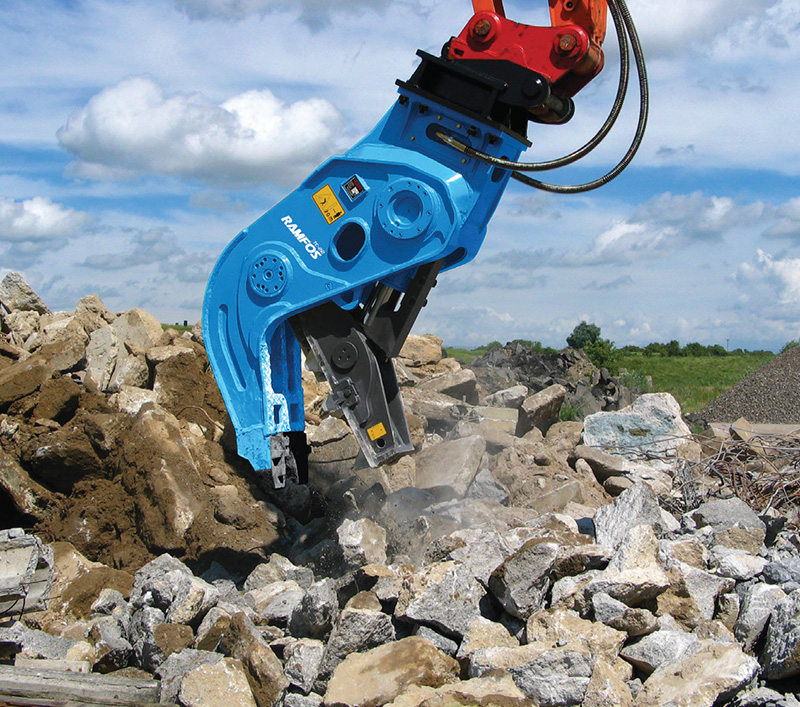

RAMFOS Hydraulic Pulverizer

RAMFOS Hydraulic Pulverizer

Produced with increased power and durability by state-of-art technology, RAMFOS pulverizers have been designed for both primary demolition work, secondary concrete reduction material sorting.

Fixed type:

  • Tooth bolting style, Hardened teeth
  • Reversible blades, Cracking tooth
  • Integrated speed-up valve
  • Trunnion type cylinder

Rotatable type:

  • Hydraulic 360° rotation unit
  • Trunnion-supported type cylinder
  • Reversible blades
  • Integrated speed-up valve
  • Wide jaw opening, Hardened teeth
Type Model Carrier
Weight		 Working
Weight		 Overall
Length		 Overall
Width		 Max Jaw
Opening		 Cutter Blade
Length		 Required
Oil Flow		 Max Operating
Pressure		 Crushing
Force (tip)		 Speed Up
Valve
ton lb in in in in gpm psi ton
Fixed TP16 13-20 2,420 66 15/12 26 9.4 26-47 4,640 51
Fixed TP19 16-25 2,996 78 17/13 28 9.4 39-66 4,640 54 Standard
Fixed TP22 20-28 4,158 85 18/13 35 14.1 39-66 4,640 64 Standard
Fixed TP32 28-36 6,039 93 21/14 41 18.9 39-66 4,640 78 Standard
Rotatable TP16R 13-16 2,750 72 15/13 28 9.4 26-47 4,640 51
Rotatable TP20R 17-25 3,880 82 17/13 30 9.4 39-66 4,640 56 Standard
Rotatable TP25R 20-27 5,060 97 18/13 36 14.1 39-66 4,640 67 Standard
Rotatable TR35R 28-36 6,490 104 21/14 41 14.1 52-79 4,640 78 Standard
TP16 Type Fixed
Carrier Weight 13-20 ton
Working Weight 2,420 lb
Overall Length 66 in
Overall Width 15/12 in
Max Jaw Opening 26 in
Cutter Blade Length 9.4 in
Required Oil Flow 26-47 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 51 ton
Speed Up Valve
TP19 Type Fixed
Carrier Weight 16-25 ton
Working Weight 2,996 lb
Overall Length 78 in
Overall Width 17/13 in
Max Jaw Opening 28 in
Cutter Blade Length 9.4 in
Required Oil Flow 39-66 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 54 ton
Speed Up Valve Standard
TP22 Type Fixed
Carrier Weight 20-28 ton
Working Weight 4,158 lb
Overall Length 85 in
Overall Width 18/13 in
Max Jaw Opening 35 in
Cutter Blade Length 14.1 in
Required Oil Flow 39-66 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 64 ton
Speed Up Valve Standard
TP32 Type Fixed
Carrier Weight 28-36 ton
Working Weight 6,039 lb
Overall Length 93 in
Overall Width 21/14 in
Max Jaw Opening 41 in
Cutter Blade Length 18.9 in
Required Oil Flow 39-66 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 78 ton
Speed Up Valve Standard
TP16R Type Rotatable
Carrier Weight 13-16 ton
Working Weight 2,750 lb
Overall Length 72 in
Overall Width 15/13 in
Max Jaw Opening 28 in
Cutter Blade Length 9.4 in
Required Oil Flow 26-47 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 51 ton
Speed Up Valve
TP20R Type Rotatable
Carrier Weight 17-25 ton
Working Weight 3,880 lb
Overall Length 82 in
Overall Width 17/13 in
Max Jaw Opening 30 in
Cutter Blade Length 9.4 in
Required Oil Flow 39-66 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 56 ton
Speed Up Valve Standard
TP25R Type Rotatable
Carrier Weight 20-27 ton
Working Weight 5,060 lb
Overall Length 97 in
Overall Width 18/13 in
Max Jaw Opening 36 in
Cutter Blade Length 14.1 in
Required Oil Flow 39-66 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 67 ton
Speed Up Valve Standard
TR35R Type Rotatable
Carrier Weight 28-36 ton
Working Weight 6,490 lb
Overall Length 104 in
Overall Width 21/14 in
Max Jaw Opening 41 in
Cutter Blade Length 14.1 in
Required Oil Flow 52-79 gpm
Max Operating Pressure 4,640 psi
Crushing Force (tip) 78 ton
Speed Up Valve Standard
